Audio Record Camera
Built-in microphone records what people say, make it authentic with sound video recording
Desinged for indoor and outdoor, durable ABS plastic housing and braket
Smart IR-Cut Night Vision
The smart IR-Cut filter switches automatically between day and night to reduce color cast in day time and enhance image brightness at night making sure you can get vivid surveillance footage from dawn to dark
Advanced Motion Detection Recording
The motion detection recording function: when motion is detected the DVR will save the footage into hard disk without missing any important events. You can even ensure that false alarms are avoided by setting the motion detection “mask” to block areas with constant movement.
NVR will send you mail automatically if there is any motion detected.

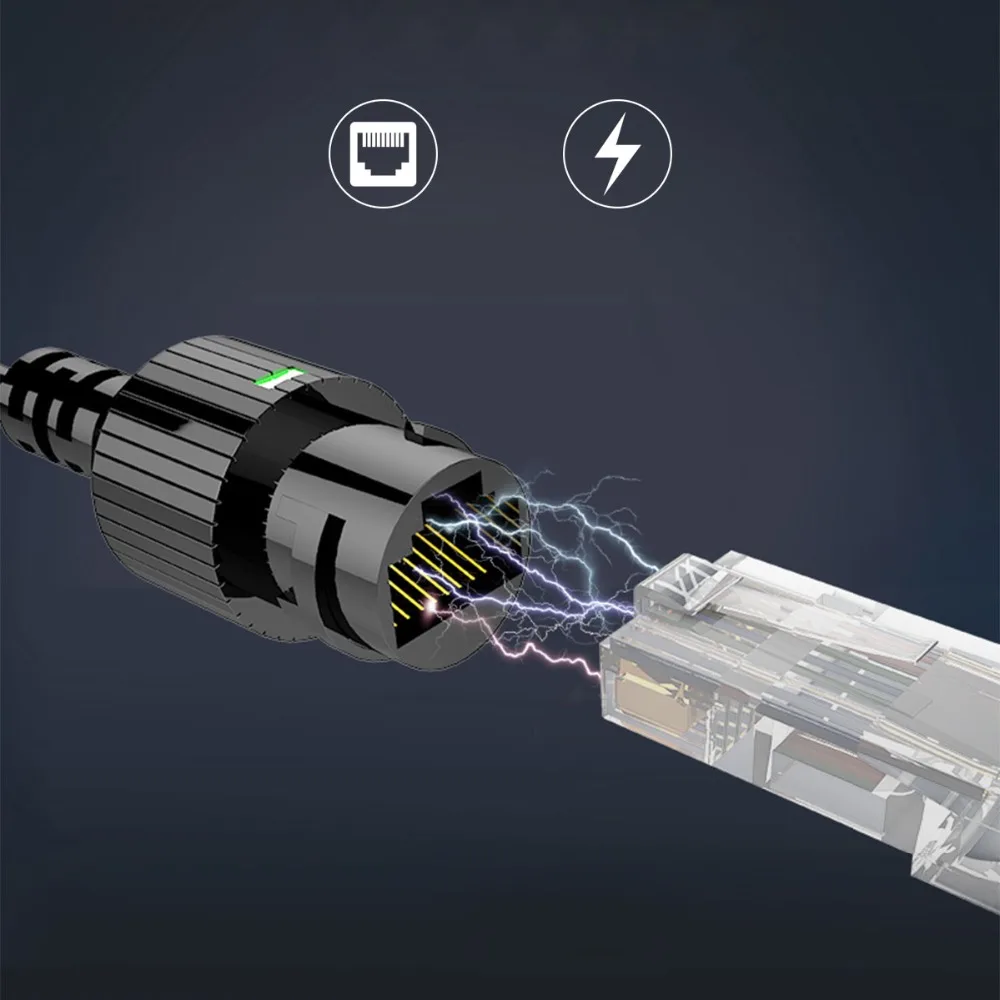

POE Function Optional
Don’t need extra power cables or adapters or switch.Plug And Play and easy setup.
Multiple Pixel Selection
5MP 4MP(3MP) 2MP Optional
1) Advanced H.265AI/H.265+ (Compatible with H.265/H.264) video compression
2) CMOS sensor, day,IR cut filter off,color;night,IR cut filter on,black/white
3) With IR-CUT, support day/night switch
4) 25fps For 1080P,25fps for 3MP,15fps for 4MP;15fps for 5MP
5) Support ONVIF;Support Third-party NVR
6) 24pcs IR Leds,25m ir distance for night vision
7) Multi-screen software and CMS
8) Image processing: auto exposure(AE), auto white balance(AWB), auto gain control(AGC)
9) Support motion detection
10) Support visit by smart phone,app XMeye
4MP/3MP: 2560X1440,15f ps(4MP only supports H.265AI encoding)/2048X 1440,25fps
Image sensor: 5MP:Hi3516EV300+1/2.8″IMX335 cmos
4MP/3MP:XM530AI+1/2.7″ SC5239 cmos
2MP:XM530AI+1/2.9″ SC2235P cmos
Lens:M12 3.6mm 6mm 8mm Optional
Communication Interface:1 RJ45 10M / 100M ethernet port
Video Image Compression:H.265
IR LED:24pcs IR LED with 25M IR Distance
Material:ABS plastic waterproof outdoor indoor use
Power:DC 12V For DC 12V Version / 48V PoE Switch or Injector For 48V PoE Version (NOT INCLUDED )
1 x IP Camera
1 x Use Manual
1 x Waterproof cap of cable
3 x Wall plug and screws
Q & A
1, IP camera default IP address:192.168.1.10
If there is a problem with “Can not find the Device”, it is the default ip address is not in the same network segment as your router.
Please click “Edit Device” to change the camera’s ip address,
For example, if your router’s ip address is 192.168.0.1, then you need to change the camera’s ip address to 192.168.0.XX.
“DeviceManage” It can find and change the IP address, upgrade the firmware.
2, P2P website: “www.xmeye.net” ,please use IE and install ActiveX,only IE supports Multi Language.Chrome,Safari just support Chinese .
then please input your P2P ID,user name and password to login and preview.
Access to the IPC through the web, only one screen can be displayed.
There are multiple IPC, please use client software to manage(such as: CMS VMS SNVR)
3,The camera’s port information.
ONVIF 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567;E-mail default port 25; SLL protocol Port 465.
4,Does the cameras can be compatible with other manufacturers NVR?
Please confirm whether other manufacturers NVR support onvif protocol.
Our camera’s onvif protocol is onvif Profile S, does not support HTTPS protocol;
Auto focus camera, other manufacturers NVR can only zoom, can not focus.
5, The camera all supports Motion Detect,FTP,Email alarm, RTSP.
A,How to set up motion detection?
Access to IPC via IE (or CMS software), device configuration – alarm function – motion detection – on and save.
B, About FTP
FTP upload video and pictures, pictures will always upload, video files larger, after the alarm, the video file will be completed to upload.
We suggest the Sever-U and FileZilla FTP Server to upload the video or image.
C,For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,it not supports Gmail temperately since the server problem ) .
D, RTSP URL for VLC media Player :
RTSP port: 554
rtsp: // (IP): (PORT) / user = (USER) & password = (PWD) & channel = (Channel) & stream = (Stream) .sdp? Real_stream
rtsp: //10.6.10.25: 554 / user = admin & password = & channel = 1 & stream = 0.sdp? Real_stream (stream = 0 primary stream 1 auxiliary stream)
If it is through the public network need to RTSP port open (default is 554), the port in the network service-RTSP can be set
6, About DDNS
Mapped media TCP port: 34567 and HTTP port: 80 (Note: mapping need to be changed to non-80)
Note: The two ports in the network settings can be viewed, can be modified
What domain names are supported?
– CN99 / DynDns / Oray / NO-IP / MYQ-SEE
1,View via PC
Install the CMS(CMS for Windows,VMS for Mac) ( Software in the CD ,or can download online,need contact us )
How to watch via CMS:
How to find “Serial ID” (very important)
2,View via web:
Local login, 192.168.1.10 (camera default IP address)(Cloud website:www.xmeye.net)
3,View via Phone(iOS and Android):
Find “XMEye” in Apple APP or Android Market
